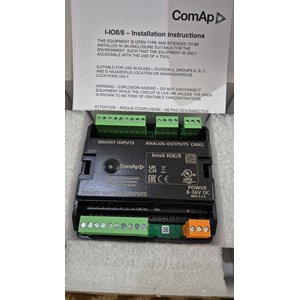

COMAP Inteli IO8/8 EXTENSION PERIPHERAL MODULE I-IO8/8 INTELI IO8-8

COMAP Inteli IO8/8 EXTENSION PERIPHERAL MODULE I-IO8/8 INTELI IO8-8 INTELIIO8/8 - GENUINE

Brand = COMAP
Order Code = I-IO8/8
Description = Extension / Peripheral Module
Binary Inputs/Outputs and analogue Outputs Module

COMAP - GENUINE PRODUCT 100%

Product Description
Peripheries dedicated to expand number of I/Os
of the main ComAp controller
Supports wide range of sensor types and
characteristics
Connection with the main ComAp controller over
CAN bus (up to 200 m length)
Extension modules are compatible with
InteliSysNT BaseBox, InteliSysNTC
BaseBox, InteliSys GAS,
InteliSysNTC Hybrid, InteliSysNT BaseBox
Marine
InteliGenNT, InteliGenNT BaseBox,
InteliGenNTC BaseBox Marine
InteliMainsNT, InteliMainsNT BaseBox,
InteliMainsNTC BaseBox
InteliDrive DCU Marine, InteliDrive DCU

Key Features
Binary input : 8/16 channels
Pull up, Pull down options
Binary output: 8/0 channels
Low side, High side options
Possibility to use the outputs as inputs
Analog output: 2 channels
Voltage: 0 - 10 V DC
Current 0 - 20 mA
PWMs
Power supply = 8 to 36 V DC
Power consumption
35 mA a @ 24 V ÷100 mA
at 8 V

COMAP - GENUINE PRODUCT 100%
